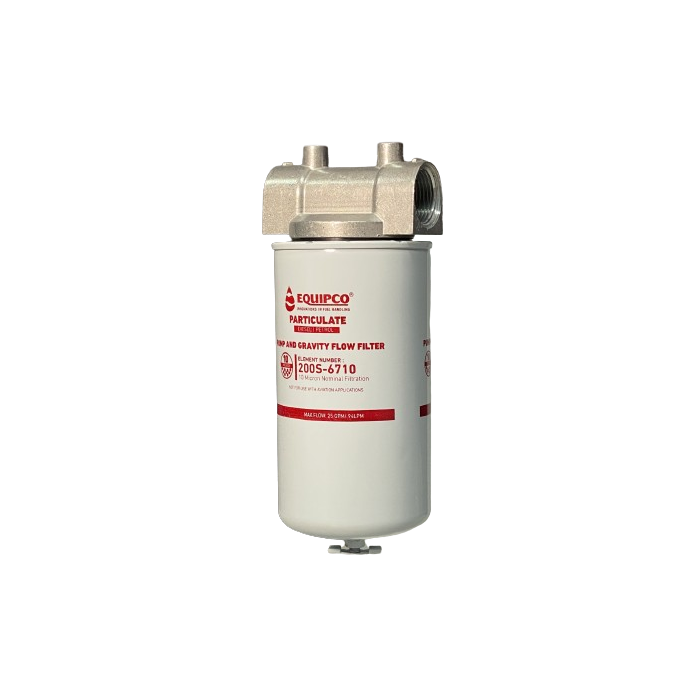

200S - 67LPM 10 micron Filters

When it comes to protecting your plant and equipment from dirty fuel, we’ve got you covered. The 200S-6710 particulate filter element is perfect for mid flow jobs where rust, dirt and other sediment could be in your fuel. It’s rated to take out particles of 10 microns or larger - that’s a 100th of a mm. Rated for flows up to 67LPM and a max pressure of 50PSI, it’s perfect for mid range filling applications. We’ve got options in higher flows as well if needed.

The 200S series are manufactured in the USA by Cimtek, so you’re guaranteed quality across the entire range. They have a simple thread on/off design for quick and easy replacement and upgrades. They also always come with a fresh gasket on each replacement element, giving you peace of mind on the assembly sealing.

The filter is available in two assemblies, with spare elements always ready to go -

200S-6710-25 - Our most common, 25mm/1” assembly ready to go for most applications.

200S-6710W-25 - Our most common, 25mm/1” assembly ready to go for most applications.

200S-6710 Replacement element for 200S filters 10 micron element with drain tap
