Overview

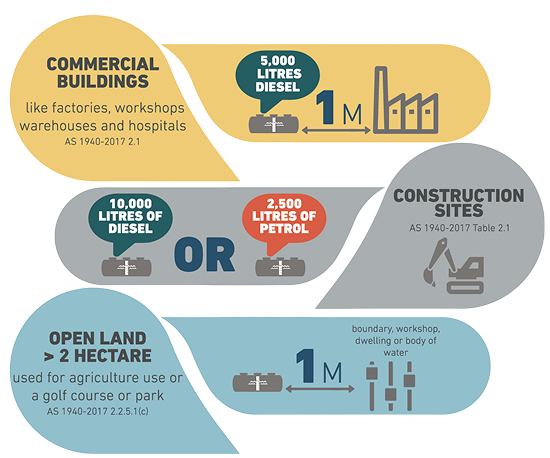

Minor Storage Exemption

Minor storage allows exemption from other sections of AS 1940:2017 if liquids stored are under quantities noted except as required by this section. AS 1940-2017 2.1

Commercial buildings like factories, workshops warehouses and hospitals allows for 5,000 litres of diesel to be stored in a tank at least 1 Metre separation from the building. AS 1940-2017 Table 2.1

Construction sites can store 2,500 litres of petrol or 10,000 litres of diesel in steel self-bunded tanks. AS 1940-2017 Table 2.1

Open land having area greater than 2 hectare and used for agriculture use or a golf course or park allows for liquids to be kept at least 1 Mtr away from any boundary, workshop, dwelling or body of water AS 1940-2017 2.2.5.1(c) but recommendation is to follow the below as a guide.

Tanks to Buildings

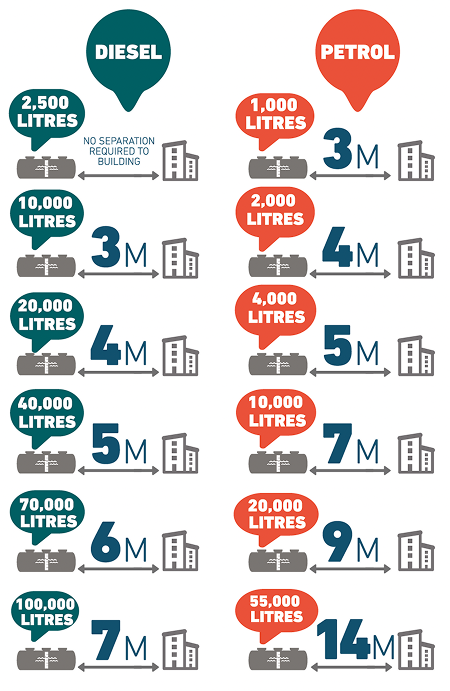

Guide for Separation Distances from Tanks to Buildings

AS 1940-2017 Table 5.4

  • 2,500 litres diesel – no separation required to building
  • 10,000 litres diesel – 3 Mtr separation to buildings
  • 20,000 litres diesel – 4 Mtr separation to buildings
  • 40,000 litres diesel – 5 Mtr separation to buildings
  • 70,000 litres diesel – 6 Mtr separation to buildings
  • 100,000 litres diesel – 7 Mtr separation to buildings

Separation Distances for Flammable Liquid Storage Tanks.

AS 1940-2017 Table 5.4

  • 1,000 litres petrol - 3 Mtr separation to buildings
  • 2,000 litres petrol - 4 Mtr separation to buildings
  • 4,000 litres petrol - 5 Mtr separation to buildings
  • 10,000 litres petrol - 7 Mtr separation to buildings
  • 20,000 litres petrol - 9 Mtr separation to buildings
  • 55,000 litres petrol - 14 Mtr separation to buildings

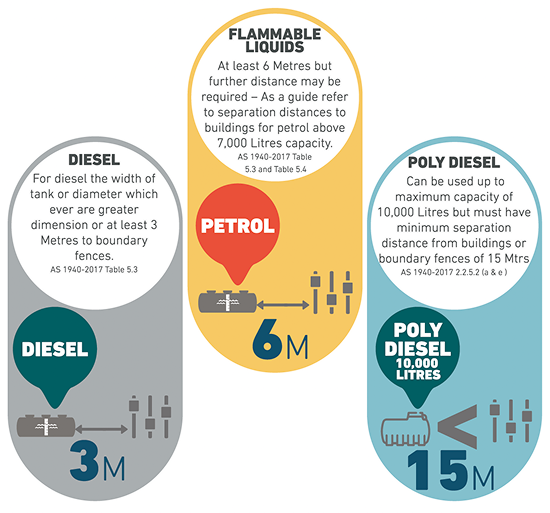

Distances To Boundary Fences

Guide for Separation Distances from Tanks to Buildings

For diesel the width of tank or diameter which ever are greater dimension or at least 3 Metres to boundary fences. AS 1940-2017 Table 5.3 For flammable liquids at least 6 Metres but further distance may be required – As a guide refer to separation distances to buildings for petrol above 7,000 Litres capacity. AS 1940-2017 Table 5.3 and Table 5.4 Poly diesel tanks can be used up to maximum capacity of 10,000 Litres but must have minimum separation distance from buildings or boundary fences of 15 Mtrs. AS 1940-2017 2.2.5.2 (a & e )

Further Info On Storage Tanks

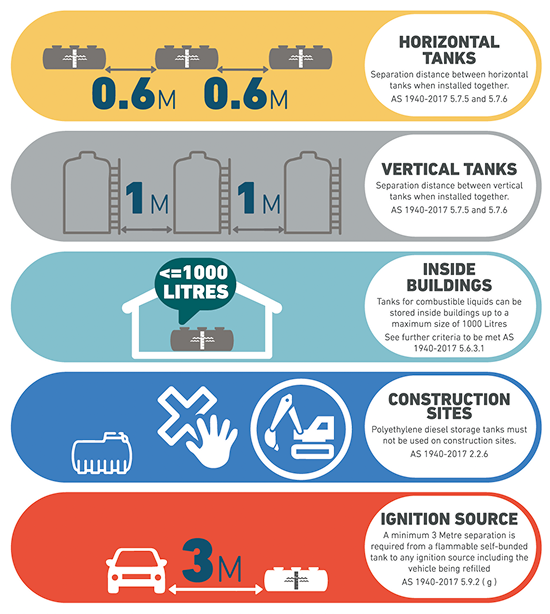

Separation distance between horizontal tanks when installed together is a minimum of 600mm between such tanks but increases to at least 1 Meter for vertical tanks. AS 1940-2017 5.7.5 and 5.7.6 Tanks for combustible liquids can be stored inside buildings up to a maximum size of 1000 Litres. See further criteria to be met AS 1940-2017 5.6.3.1 Polyethylene diesel storage tanks must not be used on construction sites. AS 1940-2017 2.2.6 A minimum 3 Metre separation is required from a flammable self-bunded tank to any ignition source including the vehicle being refilled. AS 1940-2017 5.9.2 ( g ) Further regulations governing pumping equipment, dispensing points and ignition sources to storage tanks needs to be followed and can be found in AS 1940:2017

Definitions Of Various Common Liquids Stored In Tanks

Diesel is a C1 combustible liquid. Kerosene or JetA-1 as commonly used for Aircraft is a flammable liquid class 3 and comes under the Hazchem code regulations. Petrol or (Gasoline - USA terminology) is a flammable liquid class 3

Many varieties of petrol are available such as ULP, PULP and high octane fuels such as Avgas used in aeroplanes or race cars.

Important Notice

Please note – all above for reference only and you must consult with your local authorities and fuel supplier for correct site-specific requirements. All information is given as a guide only and full responsibility and interpretation of applicable standards rests solely with the owner of the tanks or property. Ensure full consultation is done with local building regulations and your insurance provider. Reference must be made to any updates to applicable standards at any time. Equipco do not accept any liability or responsibility arising in any way from omissions or errors contained. E&OE. Acknowledgements - all information is taken from AS 1940-2017 regarding tank sizes and separation distance requirements.
