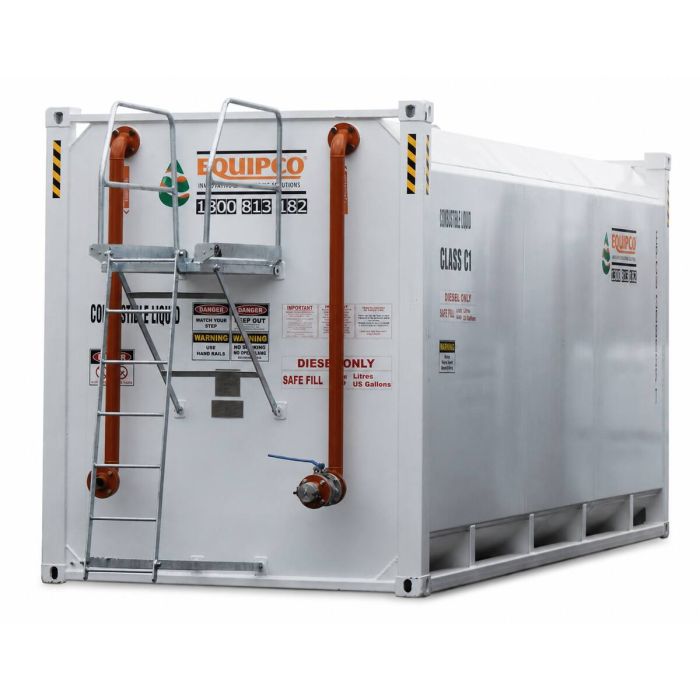

ET Range. 39,000 Ltr self bunded 20FT HC container tank.

ET Range. 39,000 Ltr self bunded 20FT HC container tank.

Code:
ET39-C
New Generation 35000 Litre Safe Fill Capacity Steel Self Bunded Container Footprint Style Tank

ET Series Tank Specifications: ET39
ET Series self bunded (double wall) tank. Constructed to A.S 1692-2006, A.S 1940-2004.
The ET Series is a premium fuel storage solution designed for harsh operating environments with minimal site preparation.

Tanks complete with:
  • Sloping tank floor for easy collection of containment's and visual inspection underneath tank.
  • Pressed corners and a reinforced top means a robust tank for your fuel storage needs.
  • 3'' Incoming pipe work, male camlock, cap, 80mm fire safe ball valve, wafer check valve, mechanical overfill prevention valve and electronic audible / visual alarm.
  • 3'' Discharge pipe work with foot valve valve.
  • Allowance for submersible pump installation on the covers.
  • All pipe work colour coded UN specification.
  • Two 600mm access points with boltable covers and gaskets. Stainless steel plugs.
  • Tanks include corner container lock castings for ease of transport.
  • 2'' Emergency vent as interstitial vent.
  • Incremented dip stick and cover supplied.
  • Updraft vent with galvanised riser.
  • All statutory signage supplied for diesel fuel.
  • Factory epoxy paint coating, 3 part 240um cover.
  • Tank internally lightly coated with engine oil.
  • 24 Month manufacturing warranty.
  • Dimensions: 6058mmL x 2438mmL x 2896mmH.
All tank prices exclude freight
Pumps, reels, flow meters, filters & other dispensing equipment are options at extra cost.
New Generation 35000 Litre Safe Fill Capacity Steel Self Bunded Container Footprint Style Tank

ET Series self bunded (double wall) tank. Constructed to A.S 1692-2006, A.S 1940-2004.
The ET Series is a premium fuel storage solution designed for harsh operating environments with minimal site preparation.


Tanks complete with:
  • Sloping tank floor for easy collection of containment's and visual inspection underneath tank.
  • Pressed corners and a reinforced top means a robust tank for your fuel storage needs.
  • 3'' Incoming pipe work, male camlock, cap, 80mm fire safe ball valve, wafer check valve, mechanical overfill prevention valve and electronic audible / visual alarm.
  • 3'' Discharge pipe work with foot valve valve.
  • Allowance for submersible pump installation on the covers.
  • All pipe work colour coded UN specification.
  • Two 600mm access points with boltable covers and gaskets. Stainless steel plugs.
  • Tanks include corner container lock castings for ease of transport.
  • 2'' Emergency vent as interstitial vent.
  • Incremented dip stick and cover supplied.
  • Updraft vent with galvanised riser.
  • All statutory signage supplied for diesel fuel.
  • Factory epoxy paint coating, 3 part 240um cover.
  • Tank internally lightly coated with engine oil.
  • 24 Month manufacturing warranty.
  • Dimensions: 6058mmL x 2438mmL x 2896mmH

All tank prices exclude freight
Pumps, reels, flow meters, filters&other dispensing equipment are options at extra cost
