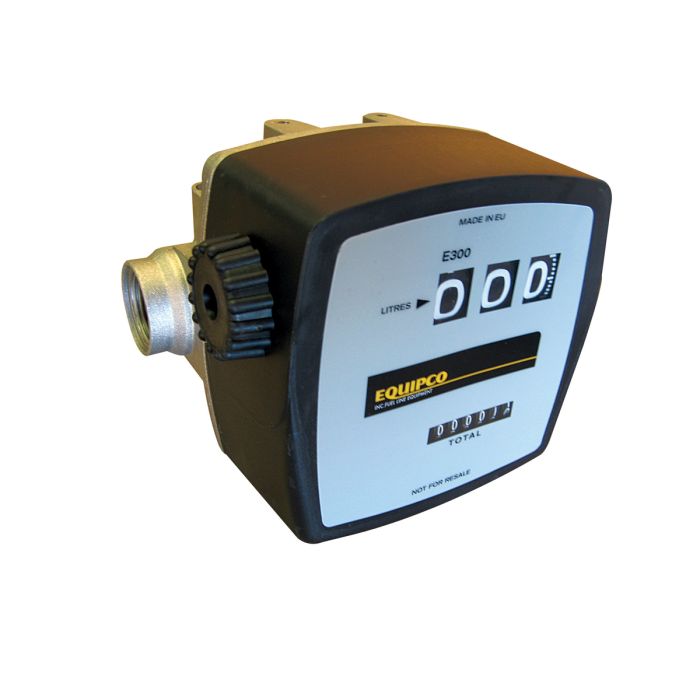

3 digit 20-120LPM 1" mechanical display flow meter for diesel

3 digit 20-120LPM 1" mechanical display flow meter for diesel

Code:
E300
When you want to know just how much fuel you’ve used, Equipco has the solution for you. Our European E300 diesel meter has been a staple offering of ours for years. Rated for pressures of 60PSI and flows from 20 to 120 LPM, they’re suited for anything from gravity feeds to pump flows. The sturdy aluminum body has 25mm/1” BSPF ports for easy fitting into new or existing systems.

The face of the meter has a large, 3 digit batch total that is easily reset and a smaller 6 digit running total. The face can also be rotated to allow for any number of mounting positions. We also have available upgraded models with specialised seals for petrol and larger displays.
Heavy duty construction flow meter with proven nutating disc measuring chamber and reliable mechanical display for trouble free service.
Ideal for contractors and earth moving industries requiring rugged equipment.
  • Made in Europe.
  • 3 digit display for measuring up to 999L.
  • 8 digit totaliser.
  • Flow range: 20-120 LPM maximum.
  • Maximum working pressure: 60 PSI.
  • Accuracy ± 1%.
  • Display can be rotated in four different positions.
  • For diesel use only.
  • Can be used for high flow or gravity applications.
  • Recalibration screw for infield adjustment.
  • 1" Female BSP inlet/outlet.

Dimensions of meter: 160mmL x 190mmW x 150mmH
More Information
Weight2.000000
Product Length (cm)21
Product Width (cm)21
Product Height (cm) 21
