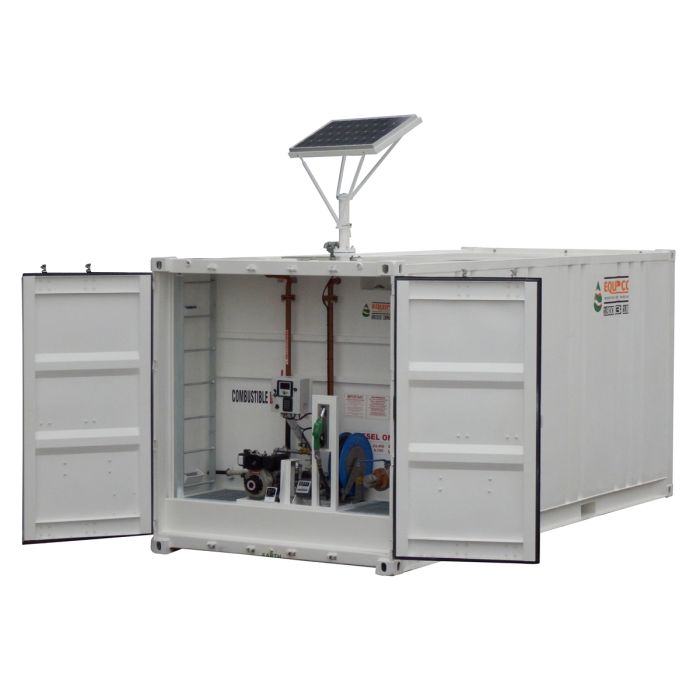

23,450 Litre Mine-Go containerised self bunded fuel tank for combustible liquids.
- Code:
- CT24-C
23,450 Litre Mine-Go containerised self bunded fuel tank for combustible liquids.
Tank
Pump Bay Bund
Pumps, reels, flow meters, filters & other dispensing equipment are options at extra cost.
- All steel construction - designed for the most demanding applications in mining, heavy contracting, rental and agriculture.
- 20Ft Shipping container ISO footprint with corner locking castings.
- Standard colour white (custom colours available).
- Hazchem signage for combustible liquid/diesel.
- Suitable for static storage of diesel fuel and lubricant oils (non-flammable).
- Dimensions: 6060mm L x 2440mm W x 2590mm
Tank
- Constructed to Australian Standards AS1692 and AS1940.
- 23,450 Litre safe fill capacity.
- Self bunded with internal tank and external bund.
- 600mm Inspection hatch with lid and integrated ladder to internal tank.
- Spill box complete with lockable hinged lid.
- 2'' Air breather vent for free venting.
- 80mm (3'') Tanker bottom fill point with full bore 80mm fire safe flanged ball valve, wafer non return valve, 3'' camlock adaptor and dust cap.
- Bottom fill pipe work painted to Australian Standard AS2700 for combustible liquids.
- 3'' Mechanical overfill protection valve with internal pipe work.
- Audible/visual high level overfill alarm - suitable for use in non-hazardous area only.
- Allowance made on inspection hatch for mounting submersible pump.
- Dual 40mm (1 1/2'') suction pipes.
Pump Bay Bund
- Bunded pump bay with drain point.
- Heavy duty dual lockable access doors to pump bay.
- Hose entry to both sides allows equipment such as generators to run while pump bay is locked.
- Access ladder to top of tank with lockable hinged hatch.
- Threaded port for optional level gauge.
- Galvanised raised mesh floor above pump bay floor bund.
Pumps, reels, flow meters, filters & other dispensing equipment are options at extra cost.
Description
23,450 Litre Mine-Go containerised self bunded fuel tank for combustible liquids.
Pumps, reels, flow meters, filters & other dispensing equipment are options at extra cost.
- All steel construction - designed for the most demanding applications in mining, heavy contracting, rental and agriculture.20Ft Shipping container ISO footprint with corner locking castings.
- Standard colour white (custom colours available).
- Hazchem signage for combustible liquid/diesel.
- Suitable for static storage of diesel fuel and lubricant oils (non-flammable).
- Dimensions: 6060mm L x 2440mm W x 2590mm
- Constructed to Australian Standards AS1692 and AS1940. 23,450 Litre safe fill capacity.
- Self bunded with internal tank and external bund.
- 600mm Inspection hatch with lid and integrated ladder to internal tank. Spill box complete with lockable hinged lid.
- 2'' Air breather vent for free venting.
- 80mm (3'') Tanker bottom fill point with full bore 80mm fire safe flanged ball valve, wafer non return valve, 3'' camlock adaptor and dust cap.
- Bottom fill pipe work painted to Australian Standard AS2700 for combustible liquids.
- 3'' Mechanical overfill protection valve with internal pipe work. Audible/visual high level overfill alarm - suitable for use in non-hazardous area only.
- Allowance made on inspection hatch for mounting submersible pump.
- Dual 40mm (1 1/2'') suction pipes.
- Bunded pump bay with drain point.
- Heavy duty dual lockable access doors to pump bay.
- Hose entry to both sides allows equipment such as generators to run while pump bay is locked.
- Access ladder to top of tank with lockable hinged hatch. Threaded port for optional level gauge.
Pumps, reels, flow meters, filters & other dispensing equipment are options at extra cost.
