2'' Overfill alarm for diesel use only in non-hazardous zone

Code:
BI-3000H-OFA
  $1,000.45 (excl. GST)

2'' Overfill alarm for diesel use only in non-hazardous zone. Suitable for use on static storage tank only.

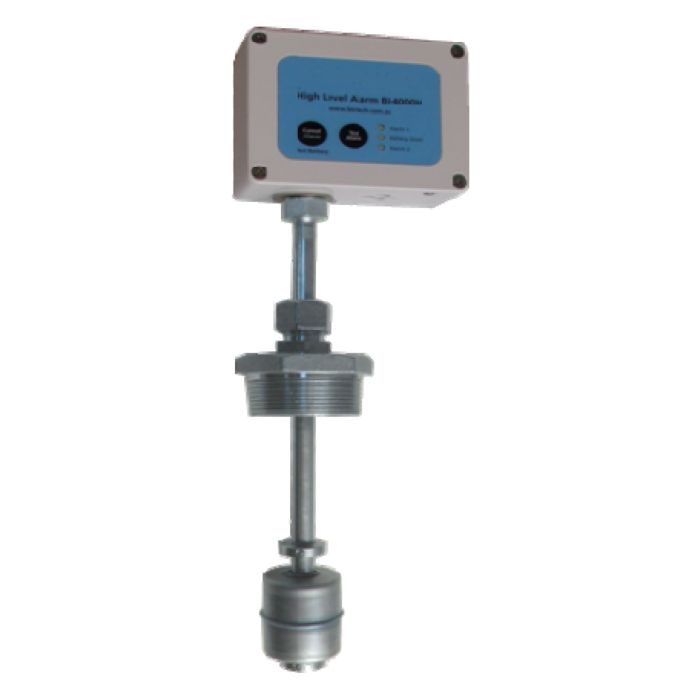

The Equipco Level Alarm Unit BI-3000H-OFA provides an audible and visual alarm for monitoring level. When used with the Equipco Level Switch, it forms an integral unit which may be directly mounted on a fuel tank to indicate overfill. the powerful audible alarm can be heard over the sound of the pumping equipment. It is battery powered and fitted within a sealed IP65 enclosure. It satisfies the reequipments of AS1940 as an overfill alarm for diesel tanks.

Description

Alarm
Enclosure: Cast Alloy, IP65
Mounting: Integral - fixed to sensor
Environment: External
Alarms: Warble Siren 97dBA and fashing LED
Alarm Duration: 2 min
Battery Life: Dependent on alarm operation (estimated 1-2 years)
Adjustment: Tank level threshold set via sensor position
Power Requirements: 4 x AAA Batteries or 12-24VDC
Current at 24VDC full alarm  30mA, with radio  35 mA,
with radio and Relay  60mA
Operating Temperature: -20°C to 60°C
Dimensions: L x H x D, 115 x 90 x 55 mm
Colour: White – Non-Hazardous Area
Compliance: Meets the requirements of AS1940 for over indication
Sensor:
Switch: Normally Open (NO)
Connection: 2 inch BSP
(Other process connections as factory options)
Orientation: Vertical ± 30º
Guide Tube: 12 mm
Guide Tube Length: 300 mm standard, other specify (3000 mm maximum)
Float: SVK44/15/A
Nominal Pressure: 0.5 MPa
Operating Temperature: -10ºC to 50ºC

Product Attachment

Attachment Icon PDF
2'' Overfill alarm for diesel use only in non-haza (Size: 0 KB)
