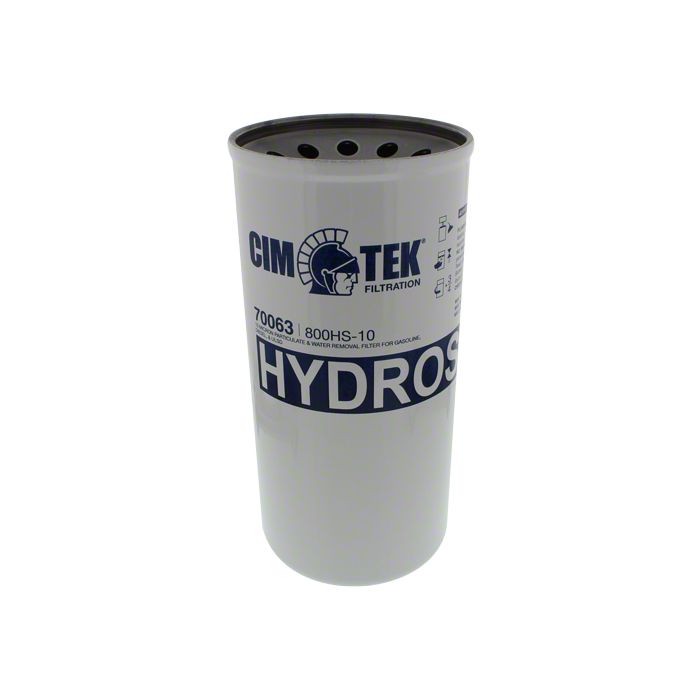

151 LPM max. HYDROSORB water and particle element.

151 LPM max. HYDROSORB water and particle element.

Code:
EFHD-15010W
When it comes to high flow filtration, you don’t have to look any further than Equipcos EFHD range of filters. The EFHD-15010W water absorbing filter element is perfect for high flow jobs where water is a concern. Rated to a flow of 150 LPM and a max pressure of 50 PSI, it’s suited to a broad range of systems.The element is rated to take out particulates of 10 microns or larger while also soaking up any water that may have found its way into your fuel.

Manufactured in the USA by Cimtek, we’ve been selling these filters for years and they’ve become a core part of range, trusted by our customers. They have a simple thread on/off design and replacement elements always come with gaskets too, so it’s an easy task to replace or upgrade your filter element.

This filter comes in three main assemblies, with replacement elements always readily available -
EFHD-15010W-25 - This is our 25mm/1” BSP assembly for mid to higher flow assemblies.
EFHD-15010W-40 - A larger ported assembly - 40mm/1½” BSP for less restriction
EFHD-30010W-50 - The biggest of the set with 50mm/2” BSP ports, this uses 2 elements for a maximum flow of 300LPM.

  • 151 LPM max.
  • HYDROSORB water and particle element. Element No. 70063.
  • To suit EFHD-15010W-25, EFHD-15010W-40 and EFHD-30010W-50. 50 PSI max working pressure. 10 micron water block element.
  • Use with diesel, petrol, ULSD and biodiesel use.
EFHD Fuel Filters
(Size: 277.8 KB)
EFHD-15010W
(Size: 603.1 KB)
More Information
Weight2.000000
Product Length (cm)47
Product Width (cm)21
Product Height (cm) 21
