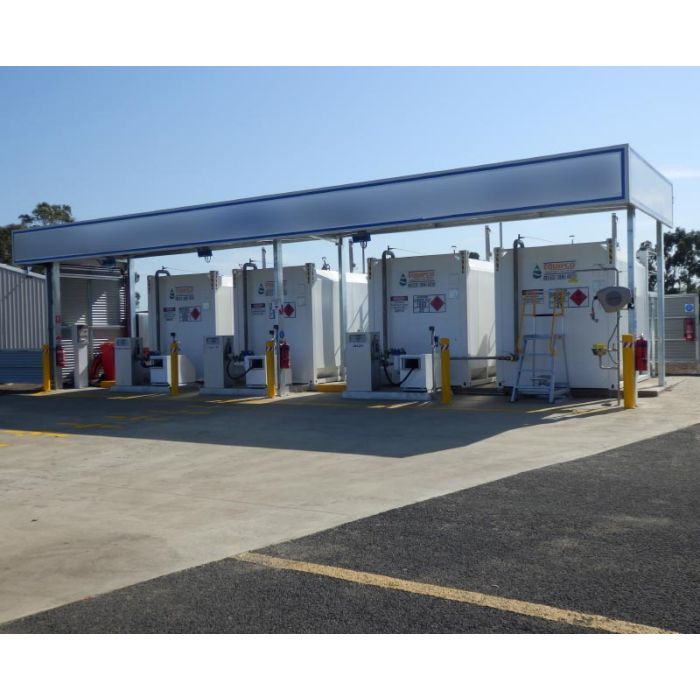

15,000 Litre Safe Fill Capacity Steel Self Bunded Container Footprint Style Tank for Aviation Fuel.

15,000 Litre Safe Fill Capacity Steel Self Bunded Container Footprint Style Tank for Aviation Fuel.

Code:
AVT16-F
New Generation 15,000 Litre Safe Fill Capacity Steel Self Bunded Container Footprint Style Tank for Aviation Fuel with 30:1 sloping floor, SS304 inner tank and mild steel bund.

Tanks complete with:
  • Incoming pipe work, male camlock, cap, 80mm Fire safe ball valve, wafer check valve, Mechanical overfill prevention valve. Safe Fill level 95% of gross capacity.
  • High level overfill alarm - for use in Zone 1 hazardous area/intrinsically safe IECEx approved.
  • Discharge pipe work with single floating suction. Allowance for submersible pump installation in the manhole covers. All pipe work colour coded UN specification.
  • Access 600mm and Hatch covers complete with gaskets. Stainless steel plugs. Tank design with two access covers.
  • Tanks include corner container lock castings for ease of transport.
  • Ladder and platform for dip access.
  • Interstitial space monitoring via dipstick.
  • Flammable emergency vents.
  • Incremented Dip stick and cover supplied.
  • Updraft vent riser galvanised and fittings supplied. Suction port 50mm c/w drop pipe fitted as standard.
  • All statutory signage supplied.
  • Factory paint coating Hempel Hempthane with Hempel Zinc as primer coating. Marine Grade Painted to 3 part 200um cover minimum. Sand Blasted to SA2.5.
  • 24 Month Manufacturing Warranty.
  • Dimensions: 2991mmL x 2438mmL x 2896mmH.
New Generation 15,000 Litre Safe Fill Capacity Steel Self Bunded Container Footprint Style Tank for Aviation Fuel with 30:1 sloping floor, SS304 inner tank and mild steel bund.

Tanks complete with:
  • Incoming pipe work, male camlock, cap, 80mm Fire safe ball valve, wafer check valve, Mechanical overfill prevention valve. Safe Fill level 95% of gross capacity.
  • High level overfill alarm - for use in Zone 1 hazardous area/intrinsically safe IECEx approved.
  • Discharge pipe work with single floating suction. Allowance for submersible pump installation in the manhole covers. All pipe work colour coded UN specification.
  • Access 600mm and Hatch covers complete with gaskets. Stainless steel plugs. Tank design with two access covers.
  • Tanks include corner container lock castings for ease of transport.
  • Ladder and platform for dip access.
  • Interstitial space monitoring via dipstick.
  • Flammable emergency vents.
  • Incremented Dip stick and cover supplied.
  • Updraft vent riser galvanised and fittings supplied. Suction port 50mm c/w drop pipe fitted as standard.
  • All statutory signage supplied.
  • Factory paint coating Hempel Hempthane with Hempel Zinc as primer coating. Marine Grade Painted to 3 part 200um cover minimum. Sand Blasted to SA2.5.
  • 24 Month Manufacturing Warranty.
  • Dimensions: 2991mmL x 2438mmL x 2896mmH.
