12Volt 40 LPM diesel transfer pump Kits

12Volt 40 LPM diesel transfer pump Kits

Code:
BT46 - Range

The starting model in our 12 volt pump range, the Equipco BT46 has been a staple offering of ours for years, well known and trusted by many of our customers. This is our standard offering in our low flow models, offering 42LPM free flow before anything is fitted to the discharge. From our own tests, when fitted with a hose and nozzle, you’ll be expecting a flow of approximately 35 to 40 LPM.

Manufactured in Europe, the sturdy cast iron pump body has 25mm/1” BSP female ports on the inlet and outlet, which are easily identified by the arrows in the casting. The pump is a self priming rotary vane type, capable of lifting up to 2 mt unassisted. The vane chamber is easily opened and inspected for maintenance as well. As part of the casting, the pump also has an internal bypass valve - this helps to protect the pump and motor in the event of a nozzle shut off where the pump is still running.

Coming standard with 4 metres of cable and clamps and with a fuse and holder as part of the cable, the pump is simple and easy to get running in a large number of installations. With a half hour duty cycle, it’s well equipped for almost all low flow filling applications.

12 Volt Pump with 4m cable, clamps & fuse

  • European made
  • Cast iron rotary vane pump
  • 42LPM max flow at free discharge
  • 1” BSPF outlet/ inlet
  • 12V powered motor
  • Self priming
  • Internal pressure relief bypass valve
  • Complete with 4m electrical cable and clamps
  • Fuse and holder
  • 30 minute duty cycle
  • 140 watt
  • 18 AMP
  • 4,200RPM
  • IP55 rated

Dimensions: 260mmL x 105mmW x 115mmH – 4.3kg

We also carry a range of kits with suction and delivery assemblies to suit.

BT46-4 12 Volt Pump with cable, clamps and fuse. 42 LPM at free discharge. Diesel use only

BT46M 12 Volt Pump Kit, 4 Mtr hose and manual nozzle. 40 LPM at the nozzle. Diesel use only

BT46MA 12 Volt Pump Kit, 4 Mtr hose and auto shut off nozzle. 38 LPM at the nozzle. Diesel use only

BT46SK 12 Volt Pump Kit complete with manual nozzle, nozzle holder, 4 Mtr hose and suction for 205 Ltr drum. 40 LPM at the nozzle. Diesel use only

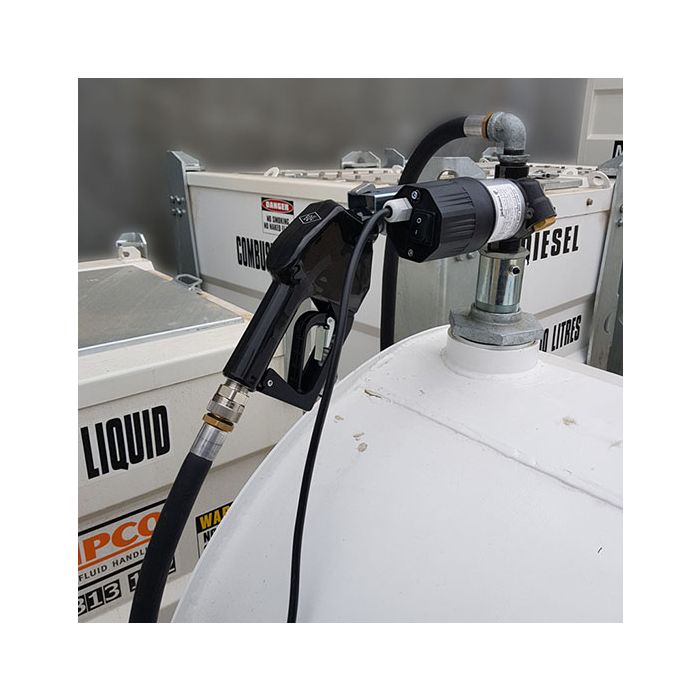

BT46SKA 12 Volt Pump Kit complete auto shut off nozzle and Swivel, nozzle holder, 4 Mtr hose and suction 205 Ltr drum. 38 LPM at the nozzle. Diesel use only.  **Bonus**200S-6710-25 filter RRP $74.00 with every BT46SKA  pump kit only**

  • European made
  • Cast iron rotary vane pump
  • 42LPM max flow at free discharge
  • 1” BSPF outlet/ inlet
  • 12V powered motor
  • Self priming
  • Internal pressure relief bypass valve
  • Complete with 4m electrical cable and clamps
  • Fuse and holder
  • 30 minute duty cycle
  • 140 watt
  • 18 AMP
  • 4,200RPM
  • IP55 rated

BT46-4 12 Volt Pump with cable, clamps and fuse. 42 LPM at free discharge. Diesel use only

BT46M 12 Volt Pump Kit, 4 Mtr hose and manual nozzle. 40 LPM at the nozzle. Diesel use only

BT46MA 12 Volt Pump Kit, 4 Mtr hose and auto shut off nozzle. 38 LPM at the nozzle. Diesel use only

BT46SK 12 Volt Pump Kit complete with manual nozzle, nozzle holder, 4 Mtr hose and suction for 205 Ltr drum. 40 LPM at the nozzle. Diesel use only

BT46SKA 12 Volt Pump Kit complete auto shut off nozzle and Swivel, nozzle holder, 4 Mtr hose and suction 205 Ltr drum. 38 LPM at the nozzle. Diesel use only.**Bonus**200S-6710-25 filter RRP $74.00 with every BT46SKA  pump kit only**
