10,500 Litre safe fill capacity self bunded diesel tank

10,500 Litre safe fill capacity self bunded diesel tank

Code:
ET12-C
POA

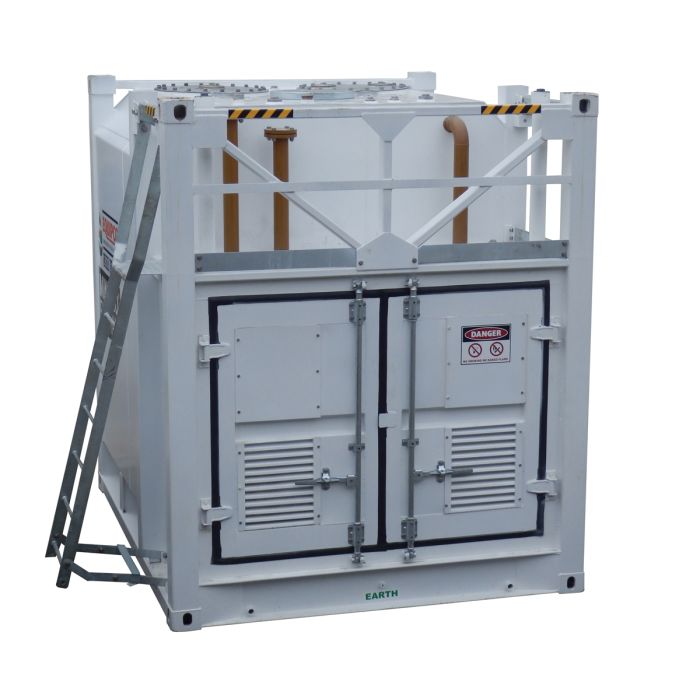

New Generation 10,000 Litre Safe Fill Capacity Steel Self Bunded Container Footprint Style Tank

ET Series Tank Specifications: ET10
ET Series self bunded (double wall) tank. Constructed to A.S 1692-2006, A.S 1940-2004 and A.S 1657-2013.
The ET Series is a premium fuel storage solution designed for harsh operating environments with minimal site preparation.

Tanks complete with:
  • Sloping tank floor for easy collection of containment's and visual inspection underneath tank.
  • Pressed corners and a reinforced top means a robust tank for your fuel storage needs.
  • 3'' Incoming pipe work, male camlock, cap, 80mm fire safe ball valve, wafer check valve, mechanical overfill prevention valve and electronic audible / visual alarm.
  • 3'' Discharge pipe work with foot valve valve.
  • Allowance for submersible pump installation on the covers.
  • All pipe work colour coded UN specification.
  • Bunded pump bay on the front of the tank c/w drain point, valves, optional hose mast provision to each side.
  • Two 600mm access points with boltable covers and gaskets. Stainless steel plugs.
  • Security doors c/w container lock handles.
  • Tanks include corner container lock castings for ease of transport.
  • Permanent ladder installed that can be located on either side of the tank (Ex-factory) to suit the installation. Ladder includes bridging stair tread.
  • Interstitial space monitoring via dipstick.
  • 2'' Emergency vent as interstitial vent.
  • Incremented dip stick and cover supplied.
  • Updraft vent with galvanised riser.
  • All statutory signage supplied for diesel fuel.
  • Factory epoxy paint coating, 3 part 240um cover. Sand Blasted to SA2.5.
  • Tank internally lightly coated with engine oil.
  • 24 Month manufacturing warranty.
  • Dimensions: 2991mmL x 2438mmL x 2896mmH.
All tank prices exclude freight
Pumps, reels, flow meters, filters & other dispensing equipment are options at extra cost.
New Generation 10,000 Litre Safe Fill Capacity Steel Self Bunded Container Footprint Style Tank

ET Series Tank Specifications: ET10
ET Series self bunded (double wall) tank. Constructed to A.S 1692-2006, A.S 1940-2004 and A.S 1657-2013.
The ET Series is a premium fuel storage solution designed for harsh operating environments with minimal site preparation.

Tanks complete with:
  • Sloping tank floor for easy collection of containment's and visual inspection underneath tank.
  • Pressed corners and a reinforced top means a robust tank for your fuel storage needs.
  • 3'' Incoming pipe work, male camlock, cap, 80mm fire safe ball valve, wafer check valve, mechanical overfill prevention valve and electronic audible / visual alarm.
  • 3'' Discharge pipe work with foot valve valve.
  • Allowance for submersible pump installation on the covers.
  • All pipe work colour coded UN specification.
  • Bunded pump bay on the front of the tank c/w drain point, valves, optional hose mast provision to each side.
  • Two 600mm access points with boltable covers and gaskets. Stainless steel plugs.
  • Security doors c/w container lock handles.
  • Tanks include corner container lock castings for ease of transport.
  • Permanent ladder installed that can be located on either side of the tank (Ex-factory) to suit the installation. Ladder includes bridging stair tread.
  • Interstitial space monitoring via dipstick.
  • 2'' Emergency vent as interstitial vent.
  • Incremented dip stick and cover supplied.
  • Updraft vent with galvanised riser.
  • All statutory signage supplied for diesel fuel.
  • Factory epoxy paint coating, 3 part 240um cover. Sand Blasted to SA2.5.
  • Tank internally lightly coated with engine oil.
  • 24 Month manufacturing warranty.
  • Dimensions: 2991mmL x 2438mmL x 2896mmH.
All tank prices exclude freight
Pumps, reels, flow meters, filters and other dispensing equipment are options at extra cost.
Attachment Icon
Container Tanks
(Size: 729.5 KB)
More Information
Weight4566.000000
